Panasonic Unveils SA-BX500: HDMI Home Theater Receiver with Emphasis on Audio

By Chris Boylan

It has been a while since a Matsushita brand has released a noteworthy product in the home theater receiver category (anyone remember Technics?), but that's about to change with the introduction of Panasonic's SA-BX500 AV Control Receiver. It's their first receiver to offer High Bit Rate (HBR) decoding of the newest surround sound formats from Dolby and DTS, and it features a unique bi-amplification option for purist audiophiles to wring the highest performance out of their speakers.

At a press event in New York yesterday, Panasonic reps demonstrated the new receiver along with their SB-TP1000 Home Theater Speaker System, with a variety of sources including stereo CD, 5.1 channel Dolby TrueHD (Blu-ray) and 7.1-channel DTS-HD Master Audio (Blu-ray). The system sounded surprisingly good, particularly in pure stereo mode, creating a stable solid soundstage with real depth and breadth and excellent dynamic range.

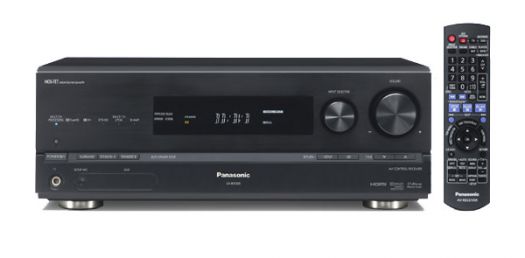

Panasonic SA-BX500 AV Control Receiver.

The trick, at least for stereo sources, is in Panasonic's proprietary Bi-Amp mode. If your speakers support direct connections to both the high frequency and low frequency drivers, the SA-BX500 will automatically detect stereo (2-channel) source material, and will reroute the unused rear channel amplification to the front speakers, allowing you to drive the low and high frequencies independently, each with 130 Watts/Channel. This can really open up the soundstage, providing greater depth and transparency in the sound.

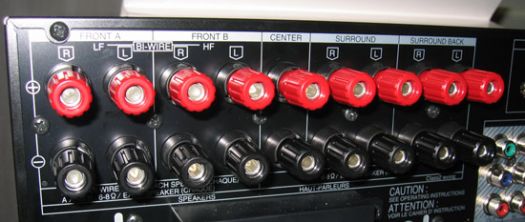

If you connect your main speakers to the "A" and "B" speaker outputs, the receiver will automatically re-allocate amplifier power to the front channels when in stereo mode.

For multi-channel sources, the BX500 offers HDMI 1.3a-compatible HDMI audio decoding, with support for PCM, Dolby Digital, Dolby Digital Plus, Dolby True HD, DTS, DTS-HD High Resolution Audio and DTS-HD Master Audio. If you're limited by your listening environment to only five speakers, but you still want to reap the benefits of 7.1-channel surround, the BX500 can create virtual rear channel or virtual side channel speakers using proprietary 7.1ch Virtual Surround technology. Of course, the receiver also features support for true 7.1-channel mode, with all seven channels driven at 130 Watts/Channel An optional wireless kit (SH-FX67) allows you to add wireless speakers, either to the surround speakers or to a separate room

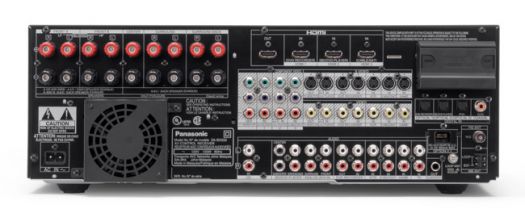

The SA-BX500 features a generous jack pack with three HDMI inputs.

In the video department, the receiver supports HDMI 1.3a features such as DeepColor and x.v.color via its three HDMI inputs. HDMI video support is pass-through only - there is no transcoding of analog signals to digital nor upconverting from standard definition to high definition.  So you'll want to use this with a display that has its own high quality upconversion capabilities or an external video processor.

The SA-BX500 will be available in October for a suggested list price of $799.95.

More information: www.panasonic.com
